enChIP

to determine specificity of CRISPR/Cas9 targeting

Active Motif's enChIP Kit* (engineered DNA-binding molecule-mediated chromatin immunoprecipitation) utilizes the CRISPR/Cas system to target specific genomic regions for investigation of associated DNA-binding interactions.

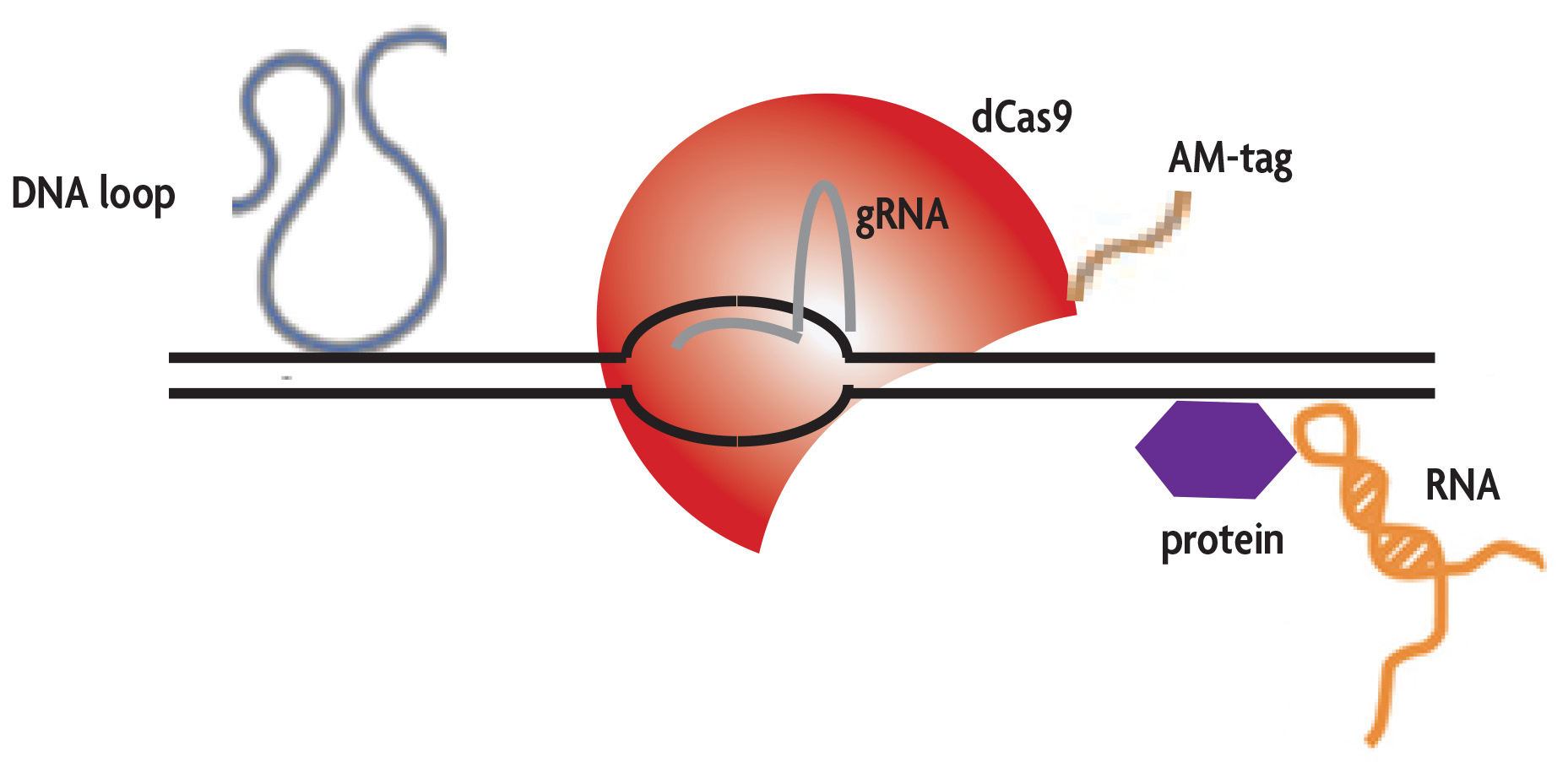

enChIP identified DNA binding interactions

A guide RNA (gRNA) containing 20 nucleotides complementary to the desired genomic region is expressed in combination with a tagged, enzymatically inactive Cas9 protein (dCas9). The gRNA directs the dCas9 protein to the target sequence and an RNA-DNA heteroduplex is formed. Chromatin immunoprecipitation is then performed on the cells using an antibody directed against the AM-tagged dCas9 protein to enrich for genomic sequences bound by the gRNA/dCas9 complex.

By using the enChIP Kit, off-target gRNA binding sites can be identified. This provides valuable information regarding the quality of gRNA design prior to use in genome editing experiments. Additionally, the enChIP Kit can be used to study cis- and trans-interacting chromosomal looping events.

*Patent numbers:  WO2014/125668; JP5954808

enChIP Features

  • Identify off-target binding events for each gRNA sequence
  • Evaluate cis- and trans-interacting chromosomal looping events
  • AM-tag design maximizes enChIP enrichment efficiency
  • Works well with open chromatin regions to detect promoter, enhancer and insulator elements

To learn more about enChIP, click on the Method, Data, or Contents tabs below. To view a manual or other related documents, click on the Documents tab below.


Name Format Cat No. Price
enChIP Kit 16 rxns 53125 $550 Buy Now
pAM_gRNA Vector 10 µg 53121 $240 Buy Now
pAM_dCas9 Vector 10 µg 53122 $240 Buy Now
pAM_gRNA_CTCF Vector 10 µg 53123 $240 Buy Now
pAM_dCas9_CTCF Vector 10 µg 53124 $240 Buy Now
High Sensitivity Chromatin Preparation 16 rxns 53046 $255 Buy Now
FuGENE® HD Transfection Reagent 0.2 ml 32042 $125 Buy Now
0.5 ml 32043 $225 Buy Now

How does the enChIP Kit work?

The CRISPR/Cas system can be traced to bacteria and archaea which use the system to target and inactivate foreign genetic material. This adaptive immunity mechanism relies on acquisition of spacers, the assembly of the CRISPR RNAs and Cas proteins to the invading nucleic acids and degradation of the foreign material by nucleases1. Recently, researchers have repurposed the CRISPR/Cas9 system for genome engineering of mammalian systems2-6.

Engineered DNA-binding molecule-mediated chromatin immunoprecipitation (enChIP) was first described in 2013 by Toshitsugu Fujita and Hodaka Fujii7,8. enChIP was designed to purify specific genomic regions using the CRISPR/Cas9 system. The targeted genomic sequence is cloned into a guide RNA (gRNA) vector in which the 5´ sequence is used to identify the DNA target sequence and the 3´ sequence forms a duplex RNA structure to bind the Cas9 protein. When the gRNA is co-expressed with a deactived (enzymatically inactive) form of the Streptococcus pyogenes Cas9 endonuclease (dCas9), specific genomic regions can be immunoprecipitated using an antibody directed against the tag. By using a catalytically inactive form of the Cas9 endonuclease, double-stranded breaks are not introduced and DNA, RNA and proteins associated with the target sequence can be recovered8-11.

In Active Motif's enChIP Kit, the dCas9 protein is expressed with Active Motif's unique AM-tag sequence, which was specifically designed for use in ChIP. The unstructured AM-tag sequence protrudes from the dCas9 protein for maximum exposure and increased immunoprecipitation efficiency. Following assembly of the gRNA and AM-tagged dCas9 to the chromatin, cells are formaldehyde fixed, lysed and the chromatin is fragmented by sonication. An antibody directed against the AM-tag is used to enrich for genomic sequences bound by the gRNA/dCas9 complex. Following immunoprecipitation, DNA can be analyzed by qPCR or NGS to identify the enriched genomic regions.

Diagram demonstrating the method of the enChIP Kit from Active Motif
Figure 1: Flow Chart of the enChIP protocol.

Prior to using the enChIP Kit (Catalog No. 53125), a guide RNA (gRNA) target sequence is selected for a specific genomic region. The gRNA sequence is then cloned into either the pAM_gRNA expression vector for dual vector transfection, or cloned into the pAM_dCas9 expression vector for single vector transfection. 24 hours post-transfection of the gRNA and AM-tagged dCas9 expression vectors, cells are passaged. Another 24 hours later cells are formaldehyde fixed and chromatin is prepared. Protein G magnetic beads are blocked and the chromatin is pre-cleared. An overnight immunoprecipitation using the AM-Tag monoclonal antibody captures the gRNA/Cas9 genomic complexes. Following washes, the DNA is eluted from the beads, the cross-links are reversed and the enriched DNA is purified. Recovered DNA can be analyzed by qPCR or Next-Generation sequencing.

References:

  1. van der Oost, J. et al. (2014) Nat. Rev. Microbiol., 12(7):  479-492.
  2. Cong, L. et al. (2013) Science, 339(6121):  819-823.
  3. Mali, P. et al. (2013) Science, 339(6121):  823-826.
  4. Hsu, P. et al. (2014) Cell, 157(6):  1262-1278.
  5. Doudna, J.A. and Charpentier, E. (2014) Science, 346(6213):  1258096.
  6. Harrison, M.M. et al. (2014) Genes Dev., 28(17):  1859-1872.
  7. Fujita, T. and Fujii, H. (2013) Biochem. Biophys. Res. Commun., 439(1):  132-136.
  8. Fujita, T. et al. (2013) Sci. Rep., 3:  3171.
  9. Fujita, T. and Fujii, H. (2014) PLoS ONE, 97(7):  e103084.
  10. Fujita, T. et al. (2015) PLoS ONE, 10(4):  e0123387.
  11. Fujii, H. and Fujita, T. (2015) Int. J. Mol. Sci., 16(9):  21802-21812.

gRNA Specificity

For researchers looking to perform genome editing experiments, determining the specificity of the gRNA binding site is critical. If the gRNA target sequence demonstrates off-target binding, then genome editing methods using active Cas9 protein could lead to unwanted downstream effects. Online gRNA design tools use algorithms to try and identify highly specific binding sequences, however, these tools cannot always provide accurate predictions of the in vivo response. By using Active Motif's enChIP Kit, each gRNA sequence can be tested to identify those with the most specific responses for use in genome editing applications.

Comparison of binding site specificity of various gRNA sequences.

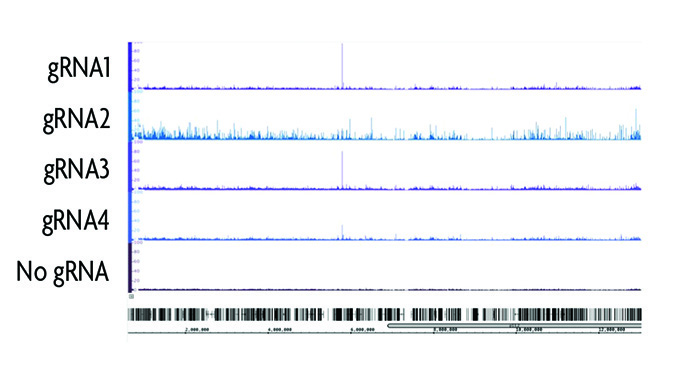

Figure 1: Determining gRNA target sequence specificity.

Four different gRNAs were designed using the CRISPRdirect program to target a 200 bp region surrounding a CTCF binding site on chromosome 19. Following transfection of the gRNA and dCas9 into HEK293T cells, chromatin was prepared and immunoprecipitated according to the instructions in the enChIP Kit. enChIP-seq results show the differences in gRNA specificity. gRNA2 has a high degree of background as compared to gRNA4 despite having only a single bp difference the target sequence. This confirms the value of performing enChIP to identify off-target binding events of the gRNA prior to use in genome engineering experiments.


Identify Chromatin Looping Interactions

In addition to identifying off-target gRNA binding events, enChIP can also reveal information about potential chromosome looping interactions. gRNAs are designed to different regions of the same genomic locus. A comparison of the overlapping peak data for the various gRNAs can identify DNA sequences that repeatedly occur. These sequences may represent potential looping interaction. Additional experiments can be designed to target the possible looping site to confirm if the original genomic locus is also enriched.



  CTCF gRNA1 CTCF gRNA2 No gRNA
enChIP ChIP-seq Results
Total number of reads  39,114,618  40,036,875  38,208,604
Total number of alignments  31,486,919  29,584,781  31,765,380
Unique alignments  28,729,643  26,987,217  28,634,570
Unique alignments (without duplicate reads)  27,418,487  24,458,100  26,837,038
Peak numbers  100  30,822  N/A
enChIP can be used to identify potential DNA looping interactions.

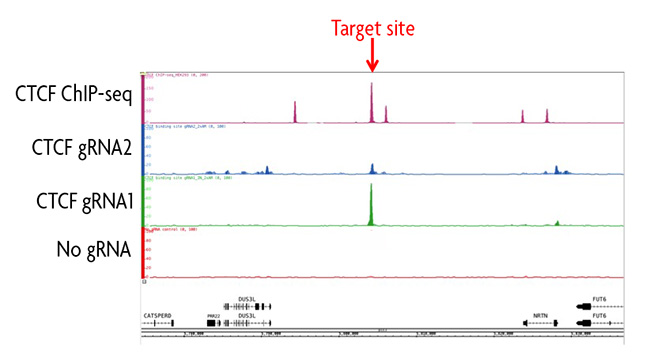

Figure 2: ChIP-seq analysis of a CTCF binding site using the enChIP Kit.

Two gRNAs were designed using CRISPRdirect targeting different sequences of a CTCF binding site on chromosome 19. Each gRNA sequence was cloned into the pAM_dCas9 Vector and transfected into HEK293T cells along with a no gRNA negative control transfection. Chromatin was prepared and immunoprecipitated according to the instructions in the enChIP Kit. Enriched DNA was analyzed by ChIP-seq and background was subtracted using the no gRNA control. Data was compared to traditional ChIP-seq data for CTCF in the same cell line. Results show gRNA1 had a strong peak at the desired target site and had little to no off-target binding events. Data for gRNA2 revealed a larger number of peaks, which represented non-specific binding of the gRNA outside of the target locus. A comparison of overlapping peak data for gRNA1, gRNA2 and the ChIP-seq data set could provide information about potential looping interactions.


Validated to Identify Promoter, Enhancer and Insulator Elements

Successful enChIP relies on the ability of the gRNA to recognize its target sequence and direct the dCas9 protein to bind the DNA. To validate the versatility of the enChIP method, Active Motif designed several gRNAs to target different genomic regions including sequences for insulator, promoter, enhancer and repressive elements. While the ChIP-seq data shows strong enrichment of the insulator, promoter and enhancer elements, the repressive region was almost undetectable. This indicates that the enChIP method is not optimized for repressive regions.

enChIP is validated for use with promoter, enhancer and insulator elements. It is not recommended for use on repressive regions

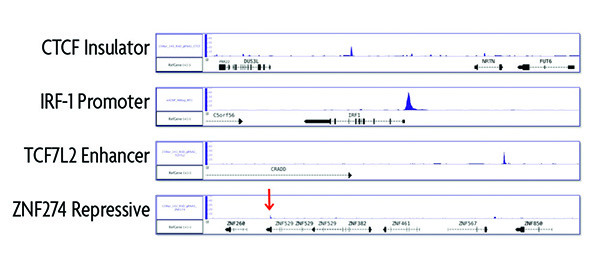

Figure 3: Comparison of enChIP performance to evaluate different genomic loci.

To evaluate different genomic loci, gRNAs were designed to target known insulator, promoter, enhancer and repressive regions of the genome. Experiments were run according to the instructions in the enChIP Kit. ChIP-seq results show highly specific enrichment of the insulator, promoter and enhancer regions. For the repressive genomic region, only a small ChIP-seq peak was observed indicating that the enChIP method is not optimized for repressive regions.


AM-tag design maximizes enChIP enrichment efficiency

Active Motif's unique AM-tag was specifically designed for use in ChIP. The AM-tag has minimal cross-reactivity with mammalian samples, thereby reducing background signal. Another benefit of the AM-tag is that the sequence is unstructured, which allows the tag to protrude from the protein of interest for maximum exposure during the immunoprecipitation for increased enrichment efficiency. The efficiency of the ChIP enrichment is shown with Active Motif's positive control pAM_gRNA_CTCF vector which was transfected into HEK293T cells and immunoprecipitated using the enChIP Kit. qPCR results show highly specific enrichment of the desired CTCF genomic locus.

enChIP is validated for use with promoter, enhancer and insulator elements. It is not recommended for use on repressive regions

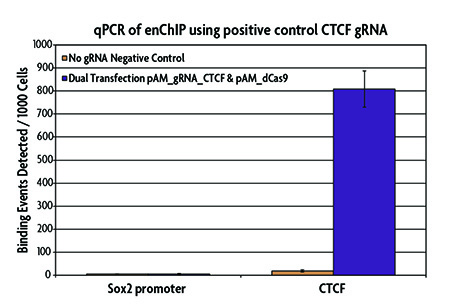

Figure 4: qPCR analysis of a positive control CTCF binding site using the enChIP Kit.

The positive control pAM_gRNA_CTCF Vector (Catalog No. 53123), which contains a gRNA sequence corresponding to a CTCF binding site on chromosome 19 (5,804,115–5,804,209), and the pAM_dCas9 (no gRNA) negative control vector were transfected into HEK293T cells. Chromatin was prepared and immunoprecipitated using the AM-tag monoclonal antibody according to the instructions in the enChIP Kit. Enriched DNA was analyzed by qPCR to evaluate a negative control (Sox2 promoter) and a positive control (CTCF) gene locus. Results show enrichment of CTCF at the expected gene locus and little to no enrichment of the no gRNA negative control or Sox2 promoter.

Contents & Storage

enChIP Kit

The enChIP Kit (Catalog No. 53125) includes all the reagents needed to perform 16 chromatin preparation and immunoprecipitation reactions. For cloning, the pAM_gRNA Vector  and pAM_dCas9 Vector are available separately. The pAM_gRNA_CTCF Vector and  pAM_dCas9_CTCF Vector are also sold separately for use as an experimental control.

Please note that the enChIP Kit is shipped on dry ice and contains reagents with multiple storage temperatures inside. Please store each component at the temperature indicated below. All reagents are guaranteed stable for 6 months from date of receipt when stored properly. Do not re-freeze the Protein G Magnetic Beads after you have received this kit. This kit includes the following components:

  • AM-Tag Monoclonal Antibody (1 µg/µl); Store at -20°C
  • RNase A (10 µg/µl); Store at -20°C
  • Proteinase K (10 µg/µl); Store at -20°C
  • Carrier; Store at -20°C
  • 10X PBS; Store at -20°C
  • 100 mM PMSF; Store at -20°C
  • Protease Inhibitor Cocktail (PIC); Store at -20°C
  • Precipitation Buffer; Store at -20°C
  • Anti-mouse IgG (1 µg/µl); Store at 4°C
  • Fixation Buffer; Store at 4°C
  • Protein G magnetic beads; Store at 4°C
  • TE, pH 8.0; Store at RT
  • Detergent; Store at RT
  • Stop Solution; Store at RT
  • Chromatin Prep Buffer; Store at RT
  • ChIP Buffer; Store at RT
  • Equilibration Buffer AM2; Store at RT
  • Blocking Buffer AM4; Store at RT
  • LS Buffer; Store at RT
  • Wash Buffer AM1; Store at RT
  • LiCl Buffer; Store at RT
  • Elution Buffer AM4; Store at RT
  • DNA Purification Binding Buffer; Store at RT
  • 3 M Sodium Acetate; Store at RT
  • DNA Purification Wash Buffer; Store at RT
  • DNA Purification Elution Buffer; Store at RT
  • DNA Purification Columns; Store at RT

pAM_gRNA Vector

Please note that the pAM_gRNA Vector is shipped at room temperature. All reagents are guaranteed stable for 6 months from date of receipt when stored properly.

  • 10 µg pAM_gRNA Vector; Store at -20°C
  • 250 pmol M13 Forward primer; Store at -20°C
  • 250 pmol M13 Reverse primer; Store at -20°C


pAM_dCas9 Vector

Please note that the pAM_dCas9 Vector is shipped at room temperature. All reagents are guaranteed stable for 6 months from date of receipt when stored properly.

  • 10 µg pAM_dCas9 Vector; Store at -20°C
  • 250 pmol dCas9 Forward primer; Store at -20°C
  • 250 pmol dCas9 Reverse primer; Store at -20°C


pAM_gRNA_CTCF Vector

Please note that the pAM_gRNA_CTCF Vector is shipped at room temperature. All reagents are guaranteed stable for 6 months from date of receipt when stored properly.

  • 10 µg pAM_gRNA_CTCF Vector; Store at -20°C


pAM_dCas9_CTCF Vector

Please note that the pAM_dCas9_CTCF Vector is shipped at room temperature. All reagents are guaranteed stable for 6 months from date of receipt when stored properly.

  • 10 µg pAM_dCas9_CTCF Vector; Store at -20°C

 Resources

For more information about the enChIP technology, please view the webinar Locus-Specific Biochemical Analysis of Genome Functions Using enChIP with CRISPR presented by Dr. Hodaka Fujii.

Several online programs are available to assist with guide RNA design. A few of these programs are listed below for reference. Software instructions may change over time, so please follow the recommendations of the software provider for use.
