Recombinant Proteins & Enzymes

Recombinant Mononucleosomes (H3.1) - biotinylated

Catalog No: 31467 Format: 20 µg $395 Buy Now
Expressed In: E. coli Protein Species: Human

Request a quote for a bulk orderBulk Order Button


for Recombinant Mononucleosomes (H3.1) - biotinylatedContents

Recombinant Mononucleosomes (H3.1) - biotinylated (20 μg protein + 20 μg DNA) is supplied in 10 mM Tris-HCl, pH 8.0, 1 mM EDTA, 2 mM DTT and 20% glycerol. Please refer to product insert upon arrival for lot-specific concentration.

for Recombinant Mononucleosomes (H3.1) - biotinylatedBackground

In vivo, histones are wrapped around by DNA in chromatin. Therefore, nucleosomes are more physiologically relevant substrates than histones and histone-derived peptides for in vitro studies. More importantly, some histone methyltransferases are significantly more active, as well as specific, when using nucleosomal substrates in HMT assays, such as DOT1L and NSD family enzymes. Nucleosomes are also widely used in histone methyltransferase screening assays to identify small molecular inhibitors for drug discovery.

for Recombinant Mononucleosomes (H3.1) - biotinylatedApplication Notes

Recombinant Mononucleosomes (H3.1) - biotinylated is suitable for use in the study of enzyme kinetics, inhibitor screening, and selectivity profiling.

HMT Assay Conditions: 2 ug mononucleosomes were incubated with different concentrations of NSD2-SET (Cat# 31476) in reaction buffer including 50 mM TrisCl, pH 8.6, 0.02% Triton X-100, 2 mM MgCl2, 1 mM TCEP, 50 μM SAM for 3 hours at room temperature. Activity was detected by Western blot.

for Recombinant Mononucleosomes (H3.1) - biotinylatedProtein Details

Recombinant Mononucleosomes (H3.1) - biotinylated consists of 167 bp of 601 DNA with 5’ biotin tag and two molecules each of histones H2A that includes amino acids 1-130 (end) (accession number NM_003512), H2B that includes amino acids 1-126 (end) (accession number NM_003518), H3.1 that includes amino acids 1-136 (end) (accession number NM_003529), and H4 that includes amino acids 1-103 (end) (accession number NM_003548). All of these histones were expressed in E. coli cells. The molecular weight of histone octamer is 108 kDa. The recombinant protein is >95% pure by SDS-PAGE.

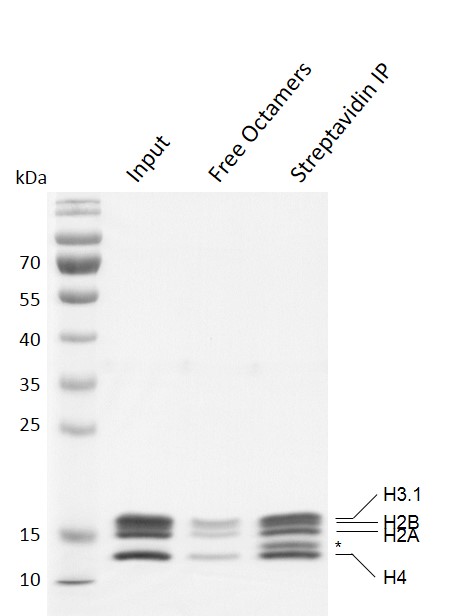

Recombinant Mononucleosomes (H3.1) - biotinylated Coomassie stained gel

Recombinant Mononucleosomes (H3.1) - biotinylated protein gel.
40 µg mononucleosomes were incubated with 15 µl streptavidin beads for 1 h at 4C. Samples were centrifuged at 4C, and supernatant was labelled as free histone octamers. Samples were run on a 12.5% SDS-PAGE gel and stained by Commassie blue.

The SDS-PAGE gel result showed that more than 80% biotinylated mononucleosomes were pulled down by streptavidin beads. * indicates streptavidin.

Recombinant Mononucleosomes (H3.1) - biotinylated DNA gel

Recombinant Mononucleosomes (H3.1) - biotinylated DNA gel.
Mononucleosomes were run on an agarose gel and stained with ethidium bromide. Lane 1: 601 DNA which was used for assembly of mononucleosomes. Lane 2: Intact mononucleosomes. Intact mononucleosomes migrate much higher than free DNA.

The agarose gel result showed almost all of the 601 DNA wrapped histone octamers to form mononucleosomes.

Recombinant Mononucleosomes (H3.1) - biotinylated activity

Recombinant Mononucleosomes (H3.1) - biotinylated activity.
2 μg mononucleosomes were incubated with 0 μg, 0.25 μg, 0.5 μg, 1 μg NSD2-SET (Cat# 31476) in reaction buffer for 3 h at room temperature, respectively. Western blot was used for detecting the generation of reaction products (H3K36me2). Recombinant Histone Octamers were used as a control substrate.

The Western blot result shows that mononucleosomes are a more suitable substrate for NSD2-SET than histone octamers.

for Recombinant Mononucleosomes (H3.1) - biotinylatedStorage

Recombinant proteins in solution are temperature sensitive and must be stored at -80°C to prevent degradation. Avoid repeated freeze/thaw cycles and keep on ice when not in storage.

for Recombinant Mononucleosomes (H3.1) - biotinylatedGuarantee

This product is for research use only and is not for use in diagnostic procedures. This product is guaranteed for 6 months from date of arrival.



Technical Data Sheet

Recombinant Mononucleosomes (H3.1) - biotinylated


Data Thumbnails

Recombinant Mononucleosomes (H3.1) - biotinylated Coomassie stained gel

Recombinant Mononucleosomes (H3.1) - biotinylated Coomassie stained gel.
(Click image to enlarge and see details).

Recombinant Mononucleosomes (H3.1) - biotinylated DNA gel

Recombinant Mononucleosomes (H3.1) - biotinylated DNA gel.
(Click image to enlarge and see details).

Recombinant Mononucleosomes (H3.1) - biotinylated activity

Recombinant Mononucleosomes (H3.1) - biotinylated activity.
(Click image to enlarge and see details).
