Recombinant Proteins & Enzymes

Recombinant Mononucleosomes (H2A.X) - biotinylated

Catalog No: 31582 Format: 20 µg $415 Buy Now
Expressed In: E. coli Protein Species: Human

Request a quote for a bulk orderBulk Order Button


for Recombinant Mononucleosomes (H2A.X) - biotinylatedContents

Recombinant Mononucleosomes (H2A.X) - biotinylated (20 µg protein + 19.2 µg DNA) are supplied in 10 mM Tris-HCl, pH 8.0, 1 mM EDTA, 2 mM DTT and 20% glycerol. Please refer to product insert upon arrival for lot-specific concentration.

for Recombinant Mononucleosomes (H2A.X) - biotinylatedBackground

In vivo, the nucleosome is the basic structural unit of chromatin. It is comprised of about 146 bp of DNA wrapped around a core of eight histones of four different types: H2A, H2B, H3 and H4. Histones are subject to posttranslational modifications, such as methylation, acetylation, phosphorylation, mono-ubiquitination, etc. Histone modifications influence multiple chromatin templated processes such as gene transcription, DNA repair and recombination. Besides the “major“ histones, there are some histone variants in specific regions of chromatin or in specific cell types. Histone variants are involved in multiple biology processes including chromosome segregation, DNA repair, transcriptional regulation and mRNA processing.
H2A.X (also known as H2AFX, Histone Family Member X) is a histone H2A family member. In mammals, variant histone H2A.X represents 10% of the total H2A, whereas in yeast 90% of H2A is of the H2A.X class. The main function of H2AX is associated with the DNA damage repair (DDR) system which is induced by DNA double strand breaks (DSBs). In many species, including S. cerevisiae, Xenopus laevis, and Drosophila melanogaster, the fourth serine residue from the carboxyl-terminal end of histone H2A becomes phosphorylated. In mammals, this event is related to phosphorylation of the H2A.X variant histone on serine 139 by DNA-dependent protein kinases (ATR/ATM/DNA- PK). The phosphorylated form of H2A.X is commonly denoted as γ-H2A.X. This H2A.XS139 phosphorylation facilitates the recruitment of the DNA damage repair machinery, as well as chromatin remodelers such as INO80 and SWR1. H2A.X is a regulator of the epithelial–mesenchymal transition.
Nucleosomes are more physiologically relevant substrates than histones and histone-derived peptides for in vitro studies. More importantly, some histone methyltransferases are significantly more active, as well as specific, when using nucleosomal substrates in HMT assays, such as DOT1L and NSD family enzymes. Nucleosomes are also widely used in histone methyltransferase screening assays to identify small molecular inhibitors for drug discovery.

for Recombinant Mononucleosomes (H2A.X) - biotinylatedApplication Notes

Recombinant Mononucleosomes (H2A.X) - biotinylated, are suitable for use as substrates in the study of enzyme kinetics, inhibitor screening, and selectivity profiling.

for Recombinant Mononucleosomes (H2A.X) - biotinylatedProtein Details

Recombinant Mononucleosomes (H2A.X) - biotinylated, consist of 167 bp of 601 DNA with a 5’ biotin tag and two molecules each of histones H2A.X that includes amino acids 1-143 (end) (accession number NP_002096.1) with a C-terminal 6×His-Tag, H2B that includes amino acids 1-126 (end) (accession number NP_003509.1), H3 that includes amino acids 1-136 (end) (accession number NP_003520.1), and H4 that includes amino acids 1-103 (end) (accession number NP_003539.1). All of these histones were expressed in E. coli cells. The molecular weight of the histone octamer is ~113.2 kDa.

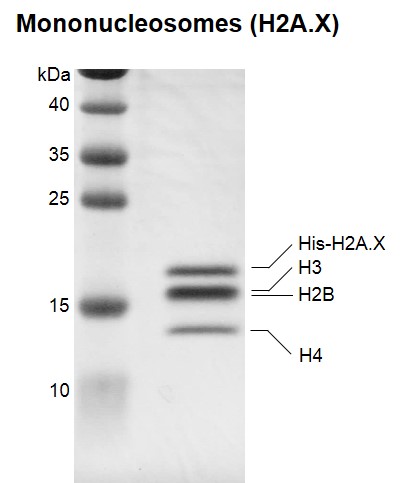

Recombinant Mononucleosomes (H2A.X) - biotinylated, SDS-PAGE.

Recombinant Mononucleosomes (H2A.X) - biotinylated, SDS-PAGE.

12.5% SDS-PAGE gel stained with Coomassie Blue.

Purity: ≥ 95%

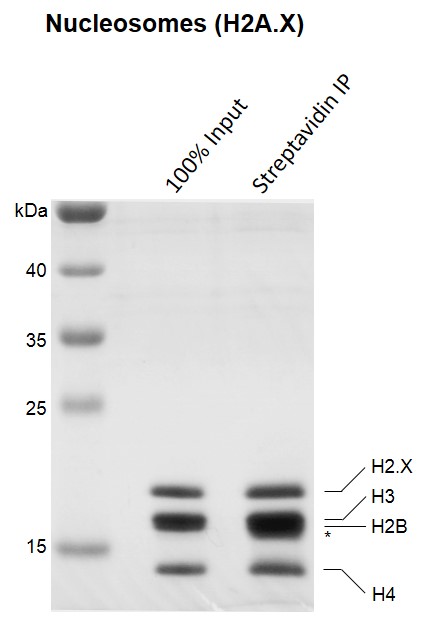

Streptavidin pull-down of Recombinant Mononucleosomes (H2A.X) - biotinylated.

Streptavidin pull-down of Recombinant Mononucleosomes (H2A.X) - biotinylated.
Mononucleosomes (H2A.X) were pulled down with Streptavidin beads. Input mononucleosomes (Lane 1) and the mononucleosomes pulled down by Streptavidin (Lane 2) were run on a 12.5% SDS-PAGE gel and stained with Coomassie Blue. The gel result shows that almost all biotinylated mononucleosomes (H2A.X) are pulled down by Streptavidin beads.
*Indicates Streptavidin.
Nucleosomes = Mononucleosomes

Recombinant Mononucleosomes (H2A.X) - biotinylated, DNA gel.

Recombinant Mononucleosomes (H2A.X) - biotinylated, DNA gel.
Biotinylated mononucleosomes (H2A.X) were run on a 2% agarose gel and stained with ethidium bromide. Lane 1: DNA marker. Lane 2: free 601 DNA. Lane 3: Intact mononucleosomes.
Intact mononucleosomes migrate much higher than free 601 DNA. The agarose gel result shows that almost all of 601 DNA wraps histone octamers to form mononucleosomes.

for Recombinant Mononucleosomes (H2A.X) - biotinylatedStorage

Recombinant proteins in solution are temperature sensitive and must be stored at -80°C to prevent degradation. Avoid repeated freeze/thaw cycles and keep on ice when not in storage.

for Recombinant Mononucleosomes (H2A.X) - biotinylatedGuarantee

This product is for research use only and is not for use in diagnostic procedures. This product is guaranteed for 6 months from date of arrival.
