Gene Regulation

LightSwitch™ Pathway Reporter Stable Cell Lines

measure pathway activation in response to various treatments

LightSwitch Pathway Reporter Stable Cell Lines

LightSwitch Pathway Reporter Stable Cell Lines simplify the task of measuring the response of specific pathways to treatment with various compounds or growth conditions. Each cell line contains a human regulatory element that has been cloned into a LightSwitch reporter vector and validated for use in measuring the activity of a specific biological pathway. Because they can be used in a variety of different plate-based formats, the Pathway Reporter Stable Cell Lines are ideal for both primary and secondary high-throughput screening.

If we don't have the stable cell line you need, Custom Services are available for creating custom stable cell lines, as well as for conducting screening services. Active Motif also offers LightSwitch Validated Pathway Collections, which are sets of promoter reporter constructs that showed significant activation or repression in response to various pathway-specific induction conditions.

IMPORTANT:  Because all LightSwitch reporter constructs contain the optimized RenSP luciferase gene, you MUST use our LightSwitch Luciferase Assay Reagents to obtain optimal results. (Other luciferase assay reagents are not compatible with RenSP.)


Name Pathway Construct Format Cat No. Price
Control 2 Reporter Cell Line (Hep G2) Housekeeping Control ACTB 1 vial 32232 $7,900 Buy Now
Control 2 Reporter Cell Line (HT1080) Housekeeping Control ACTB 1 vial 32202 $7,900 Buy Now
AhR v2 Reporter Cell Line (Hep G2) Dioxin/Tox CYP1A1 1 vial 32234 $7,900 Buy Now
BMP Reporter Cell Line (HT1080) Bone Morphogenesis BMP v2 SynthRE 1 vial 32206 $7,900 Buy Now
GR Reporter Cell Line (HT1080) Glucocorticoid Receptor GR SynthRE 1 vial 32210 $7,900 Buy Now
HIF-1 alpha v1 Reporter Cell Line (HT1080) Hypoxia LDHA 1 vial 32211 $7,900 Buy Now
HSF Reporter Cell Line (HT1080) Heat Shock HSF SynthRE 1 vial 32213 $7,900 Buy Now
NFκB v1 Reporter Cell Line (HT1080) Inflammation IL8 1 vial 32214 $7,900 Buy Now
NFκB v2 Reporter Cell Line (HT1080) Inflammation NFKB2 1 vial 32215 $7,900 Buy Now
NFκB v3 Reporter Cell Line (HT1080) Inflammation NFκB SynthRE 1 vial 32216 $7,900 Buy Now
p53 Reporter Cell Line (HT1080) DNA Damage, Apoptosis E2F7 1 vial 32218 $7,900 Buy Now
SREBP v1 Reporter Cell Line (Hep G2) Cholesterol LSS 1 vial 32251 $7,900 Buy Now
SREBP v1 Reporter Cell Line (HT1080) Cholesterol LSS 1 vial 32221 $7,900 Buy Now
STAT Reporter Cell Line (Hep G2) Interferon CSF1 1 vial 32253 $7,900 Buy Now
STAT Reporter Cell Line (HT1080) Interferon CSF1 1 vial 32223 $7,900 Buy Now

LightSwitch Luciferase Pathway Reporter Stable Cell Line Overview

LightSwitch Pathway Reporter Stable Cell Lines make it easier to measure the response of a pathway to compounds and growth conditions because the regulatory element to be tested and the RenSP luciferase are already stably integrated into the cell's genome. Simply seed the cell line in multi-well plates, treat each well as desired, then perform high-throughput luciferase assays to measure the response of the promoter to the various treatments.

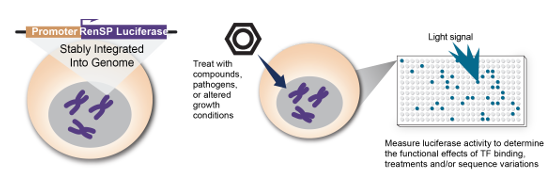

Diagram depicting a high-throughput luciferase reporter assay using LightSwitch Pathway Reporter Stable Cell Lines to measure promoter responses to treatment with compounds or growth conditions
Figure 1: High-throughput luciferase reporter assays using a LightSwitch Pathway Reporter Stable Cell Line.

LightSwitch Luciferase Pathway Reporter Stable Cell Lines

The LightSwitch Pathway Reporter Stable Cell Lines are ideal tools for use in high-throughput screening. In contrast to transiently transfected reporter vectors, the reporter lines stably express the RenSP reporter gene regulated by an element that is responsive to a specific pathway. This eliminates the need to transfect the reporter construct and increases the length of time over which experiments can be conducted.

Applications

  • Extended Assay Length – Measure changes in expression over longer time courses than are possible with transient assays.
  • High-throughput Screening – LightSwitch Pathway Reporter cell lines are ideal for both primary and secondary high-throughput screening, and can be used inn many different plate formats (96-, 384- and 1536-well plates).
  • Pathway Profiling – Use a panel of reporter cell lines to characterize the effect of your compounds on a variety of biological pathways.

Custom Services are also available for creating custom stable cell lines or for conducting pathway screening.

LightSwitch Pathway Reporter Stable Cell Lines perform exceptionally in primary screens in 96-, 384- and 1536-well formats, and provide consistent, robust results.

Control 2 Reporter Cell Lines (HT1080 & Hep G2)

The LightSwitch™ Control 2 Reporter Cell Lines are used to normalize for non-specific effects when performing LightSwitch Luciferase Assays using our Pathway Reporter Stable Cell Lines. Each cell line contains a stably integrated LightSwitch ACTB Promoter Control construct (S717678), which is comprised of the promoter sequence of the ACTB (beta actin) gene cloned into the MCS of the LightSwitch Promoter Reporter Vector upstream of the RenSP luciferase gene.

The data at right shows the luciferase activity of both LightSwitch Control 2 Reporter Cell Lines (HT1080 & Hep G2) when assayed using the LightSwitch Luciferase Assay Kit without any induction. Please download the Data Sheet found under the Documents tab for more complete details.

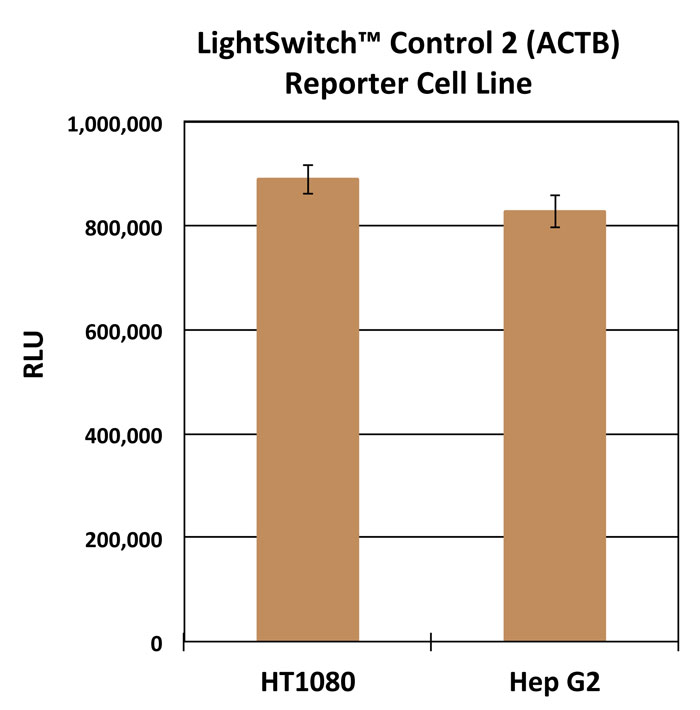

Graph showing the luciferase activity of the LightSwitch Control 2 Reporter Cell Lines (HT1080 and Hep G2)
Click image to enlarge.

AhR v2 Reporter Cell Line (Hep G2)

The LightSwitch™ AhR v2 Reporter Cell Line (Hep G2) was designed for study of the aryl hydrocarbon receptor (AhR) and the regulation of biological responses to dioxins and toxicity. It contains a stably integrated LightSwitch Promoter Reporter GoClone™ construct (S714555), which is comprised of the promoter sequence of the CYP1A1 (cytochrome P450, family 1, subfamily A, polypeptide 1) gene cloned into the MCS of the LightSwitch Promoter Reporter Vector upstream of the RenSP luciferase gene.

The data at right shows the luciferase activity of the LightSwitch AhR v2 Reporter Cell Line (Hep G2) when assayed using the LightSwitch Luciferase Assay Kit following induction with increasing amounts of Omeprazole (top) or TCDD (2,3,7,8-tetrachlorodibenzo-p-dioxin) (bottom). Please download the Data Sheet found under the Documents tab for more complete details.

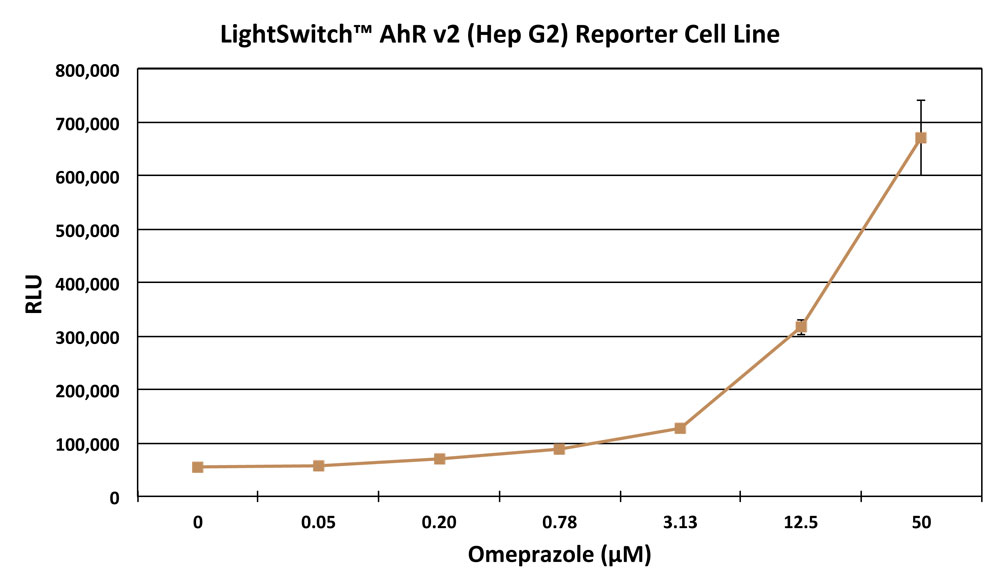

Graph showing the luciferase activity of the LightSwitch AhR v2 Reporter Cell Line (Hep G2) following induction with increasing amounts of Omeprazole
T-Test: 1.35E-05    Z′: 0.82
Click image to enlarge.


Graph showing the luciferase activity of the LightSwitch AhR v2 Reporter Cell Line (Hep G2) following induction with increasing amounts of Omeprazole
T-Test: 5.99E-07    Z′: 0.91
Click image to enlarge.

BMP Reporter Cell Line (HT1080)

The LightSwitch™ BMP Reporter Cell Line (HT1080) was designed for study of the Bone Morphogenesis pathway. It contains a stably integrated LightSwitch Synthetic Response Element reporter construct (S900030), which is comprised of repeats of a bone morphogenetic protein (BMP) binding site motif, cloned upstream of a minimal promoter and the RenSP luciferase gene in the LightSwitch Long-range Enhancer Reporter Vector.

The data at right shows the luciferase activity of the LightSwitch BMP Reporter Cell Line (HT1080) when assayed using the LightSwitch Luciferase Assay Kit following induction with increasing amounts of bone morphogenetic protein 4 (BMP4). Please download the Data Sheet found under the Documents tab for more complete details.

Graph showing the luciferase activity of the LightSwitch BMP Reporter Cell Line (HT1080) following induction with increasing amounts of bone morphogenetic protein 4 (BMP4)
T-Test: 3.41E-05    Z′: 0.72
Click image to enlarge.

GR Reporter Cell Line (HT1080)

The LightSwitch™ GR Reporter Cell Line (HT1080) was designed for study of pathways regulated by the glucocorticoid receptor (GR). It contains a stably integrated LightSwitch Synthetic Response Element reporter construct (S900015), which is comprised of repeats of a glucocorticoid receptor binding site motif, cloned upstream of a minimal promoter and the RenSP luciferase gene in the LightSwitch Long-range Enhancer Reporter Vector.

The data at right shows the luciferase activity of the LightSwitch GR Reporter Cell Line (HT1080) when assayed using the LightSwitch Luciferase Assay Kit following induction with increasing amounts of Dexamethasone (DMSO). Please download the Data Sheet found under the Documents tab for more complete details.

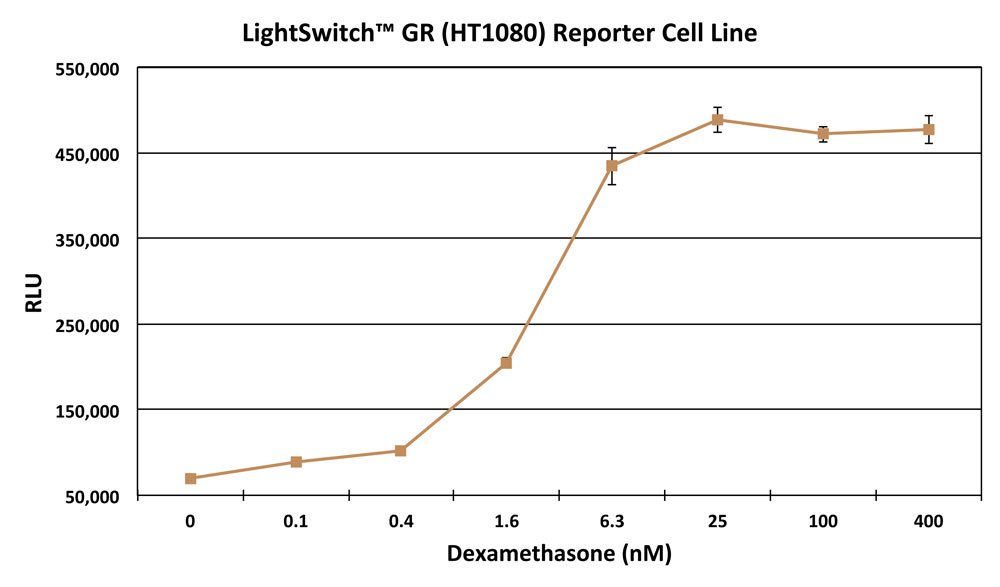

Graph showing the luciferase activity of the LightSwitch GR Reporter Cell Line (HT1080) following induction with increasing amounts of Dexamethasone (DMSO)
T-Test: 6.41E-07    Z′: 0.90
Click image to enlarge.

HIF-1 alpha v1 Reporter Cell Line (HT1080)

The LightSwitch™ HIF-1 alpha v1 Reporter Cell Line (HT1080) was designed for study of the Hypoxia pathway. It contains a stably integrated LightSwitch Promoter Reporter GoClone™ construct (S721613), which is comprised of the promoter sequence of the lactate dehydrogenase A (LDHA) gene cloned into the MCS of the LightSwitch Promoter Reporter Vector upstream of the RenSP luciferase gene.

The data at right shows the luciferase activity of the LightSwitch HIF-1 alpha v1 Reporter Cell Line (HT1080) when assayed using the LightSwitch Luciferase Assay Kit following induction with increasing amounts of Desferrioxamine (DFO). Please download the Data Sheet found under the Documents tab for more complete details.

Graph showing the luciferase activity of the LightSwitch HIF-1 alpha v1 Reporter Cell Line (HT1080) following induction with increasing amounts of Desferrioxamine (DFO)
T-Test: 2.99E-07    Z′: 0.91
Click image to enlarge.

HSF Reporter Cell Line (HT1080)

The LightSwitch™ HSF Reporter Cell Line (HT1080) was designed for study of the Heat Shock pathway. It contains a stably integrated LightSwitch Synthetic Response Element reporter construct (S900017), which is comprised of repeats of a heat shock factor (HSF) binding site motif, cloned upstream of a minimal promoter and the RenSP luciferase gene in the LightSwitch Long-range Enhancer Reporter Vector.

The data at right shows the luciferase activity of the LightSwitch HSF Reporter Cell Line (HT1080) when assayed using the LightSwitch Luciferase Assay Kit following induction by moving the plates to 43°C and then incubating at this elevated temperature for the times indicated (0-8 hours). Please download the Data Sheet found under the Documents tab for more complete details.

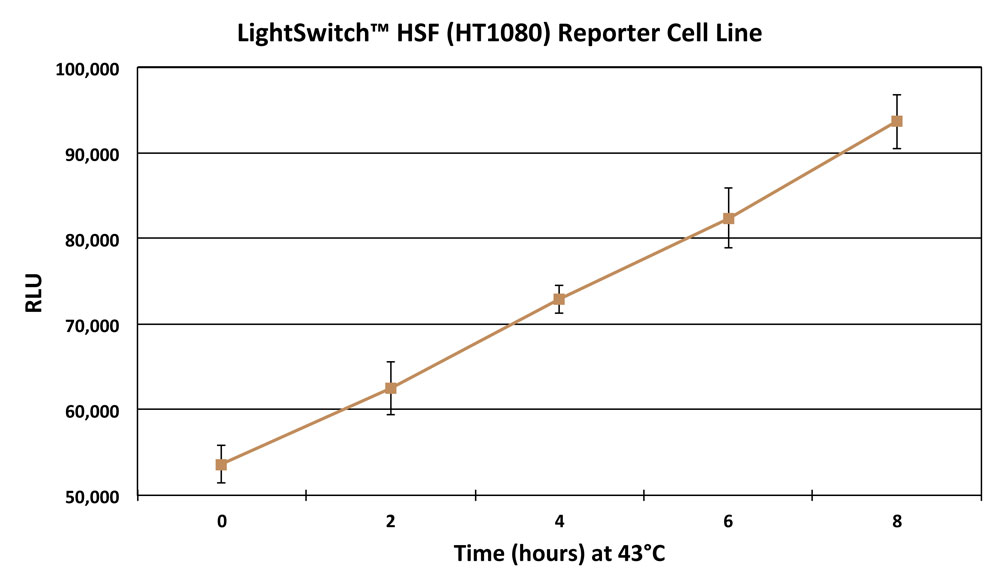

Graph showing the luciferase activity of the LightSwitch HSF Reporter Cell Line (HT1080) following induction by moving the plates to 43 degrees Centigrade and then incubating at this elevated temperature for the times indicated (0-8 hours)
T-Test: 1.42E-02    Z′: 0.60
Click image to enlarge.

NFκB v1 Reporter Cell Line (HT1080)

The LightSwitch™ NFκB v1 Reporter Cell Line (HT1080) was designed for study of the Inflammation pathway. It contains a stably integrated LightSwitch Promoter Reporter GoClone™ construct (S721709), which is comprised of the promoter sequence of the IL8 (aka CXCL8, chemokine (C-X-C motif) ligand 8) gene cloned into the MCS of the LightSwitch Promoter Reporter Vector upstream of the RenSP luciferase gene.

The data at right shows the luciferase activity of the LightSwitch NFκB v1 Reporter Cell Line (HT1080) when assayed using the LightSwitch Luciferase Assay Kit following induction with increasing amounts of TNF alpha. Please download the Data Sheet found under the Documents tab for more complete details.

Graph showing the luciferase activity of the LightSwitch NF-kappa-B v1 Reporter Cell Line (HT1080) following induction with increasing amounts of TNF alpha
T-Test: 2.29E-06    Z′: 0.86
Click image to enlarge.

NFκB v2 Reporter Cell Line (HT1080)

The LightSwitch™ NFκB v2 Reporter Cell Line (HT1080) was designed for study of the Inflammation pathway. It contains a stably integrated LightSwitch Promoter Reporter GoClone™ construct (S722879), which is comprised of the promoter sequence of the NFκB2 (p49/p100) gene cloned into the MCS of the LightSwitch Promoter Reporter Vector upstream of the RenSP luciferase gene.

The data at right shows the luciferase activity of the LightSwitch NFκB v2 Reporter Cell Line (HT1080) when assayed using the LightSwitch Luciferase Assay Kit following induction with increasing amounts of TNF alpha. Please download the Data Sheet found under the Documents tab for more complete details.

Graph showing the luciferase activity of the LightSwitch NF-kappa-B v2 Reporter Cell Line (HT1080) following induction with increasing amounts of TNF alpha
T-Test: 3.15E-04    Z′: 0.48
Click image to enlarge.

NFκB v3 Reporter Cell Line (HT1080)

The LightSwitch™ NFκB v3 Reporter Cell Line (HT1080) was designed for study of the Inflammation pathway. It contains a stably integrated LightSwitch Synthetic Response Element reporter construct (S900018), which is comprised of repeats of an NFκB binding site motif, cloned upstream of a minimal promoter and the RenSP luciferase gene in the LightSwitch Long-range Enhancer Reporter Vector.

The data at right shows the luciferase activity of the LightSwitch NFκB v3 Reporter Cell Line (HT1080) when assayed using the LightSwitch Luciferase Assay Kit following induction with increasing amounts of TNF alpha (top) or IFN alpha (bottom). Please download the Data Sheet found under the Documents tab for more complete details.

Graph showing the luciferase activity of the LightSwitch NF-kappa-B v3 Reporter Cell Line (HT1080) following induction with increasing amounts of TNF alpha
T-Test: 1.14E-07    Z′: 0.94
Click image to enlarge.


Graph showing the luciferase activity of the LightSwitch NF-kappa-B v3 Reporter Cell Line (HT1080) following induction with increasing amounts of IFN alpha
T-Test: 4.75E-05    Z′: 0.75
Click image to enlarge.

p53 Reporter Cell Line (HT1080)

The LightSwitch™ p53 Reporter Cell Line (HT1080) was designed for study of the DNA Damage and Apoptosis pathways. It contains a stably integrated LightSwitch Promoter Reporter GoClone™ construct (S718021), which is comprised of the promoter sequence of the E2F transcription factor 7 (E2F7) gene cloned into the MCS of the LightSwitch Promoter Reporter Vector upstream of the RenSP luciferase gene.

The data at right shows the luciferase activity of the LightSwitch p53 Reporter Cell Line (HT1080) when assayed using the LightSwitch Luciferase Assay Kit following induction with increasing amounts of Nutlin-3. Please download the Data Sheet found under the Documents tab for more complete details.

Graph showing the luciferase activity of the LightSwitch p53 Reporter Cell Line (HT1080) following induction with increasing amounts of Nutlin-3
T-Test: 9.36E-08    Z′: 0.95
Click image to enlarge.

SREBP v1 Reporter Cell Line (Hep G2)

The LightSwitch™ SREBP v1 Reporter Cell Line (Hep G2) was designed for study of the cholesterol biosynthesis pathway. It contains a stably integrated LightSwitch Promoter Reporter GoClone™ construct (S711010), which is comprised of the promoter sequence of the LSS (lanosterol synthase or 2,3-oxidosqualene-lanosterol cyclase) gene cloned into the MCS of the LightSwitch Promoter Reporter Vector upstream of the RenSP luciferase gene. LSS catalyzes the first step in the biosynthesis of cholesterol, steroid hormones, and vitamin D.

The data at right shows the luciferase activity of the LightSwitch SREBP v1 Reporter Cell Line (Hep G2) when assayed using the LightSwitch Luciferase Assay Kit following induction with increasing amounts of Lovastatin. Please download the Data Sheet found under the Documents tab for more complete details.

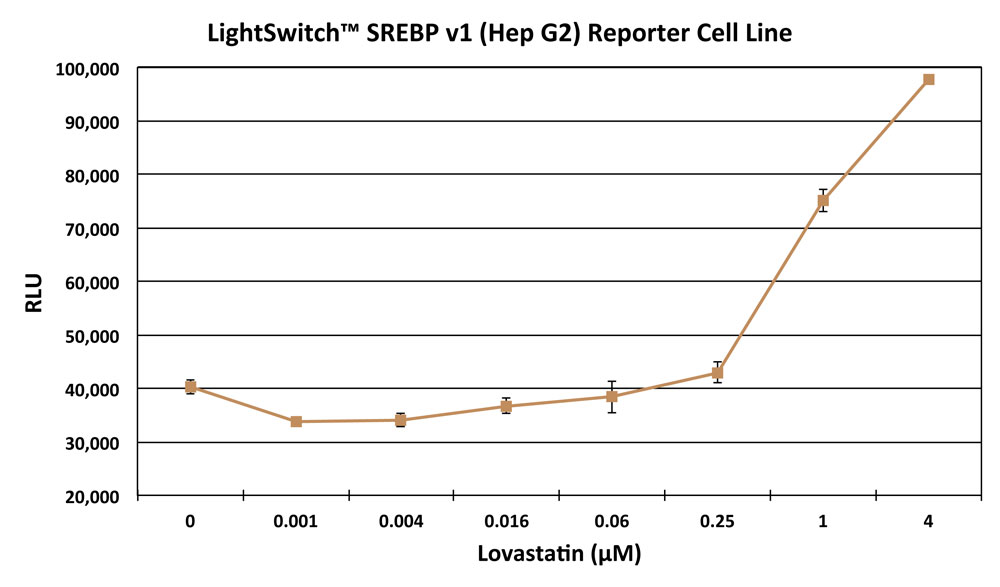

Graph showing the luciferase activity of the LightSwitch SREBP v1 Reporter Cell Line (Hep G2) following induction with increasing amounts of Lovastatin
T-Test: 7.05E-07    Z′: 0.89
Click image to enlarge.

SREBP v1 Reporter Cell Line (HT1080)

The LightSwitch™ SREBP v1 Reporter Cell Line (HT1080) was designed for study of the cholesterol biosynthesis pathway. It contains a stably integrated LightSwitch Promoter Reporter GoClone™ construct (S711010), which is comprised of the promoter sequence of the LSS (lanosterol synthase or 2,3-oxidosqualene-lanosterol cyclase) gene cloned into the MCS of the LightSwitch Promoter Reporter Vector upstream of the RenSP luciferase gene. LSS catalyzes the first step in the biosynthesis of cholesterol, steroid hormones, and vitamin D.

The data at right shows the luciferase activity of the LightSwitch SREBP v1 Reporter Cell Line (HT1080) when assayed using the LightSwitch Luciferase Assay Kit following induction with increasing amounts of Lovastatin. Please download the Data Sheet found under the Documents tab for more complete details.

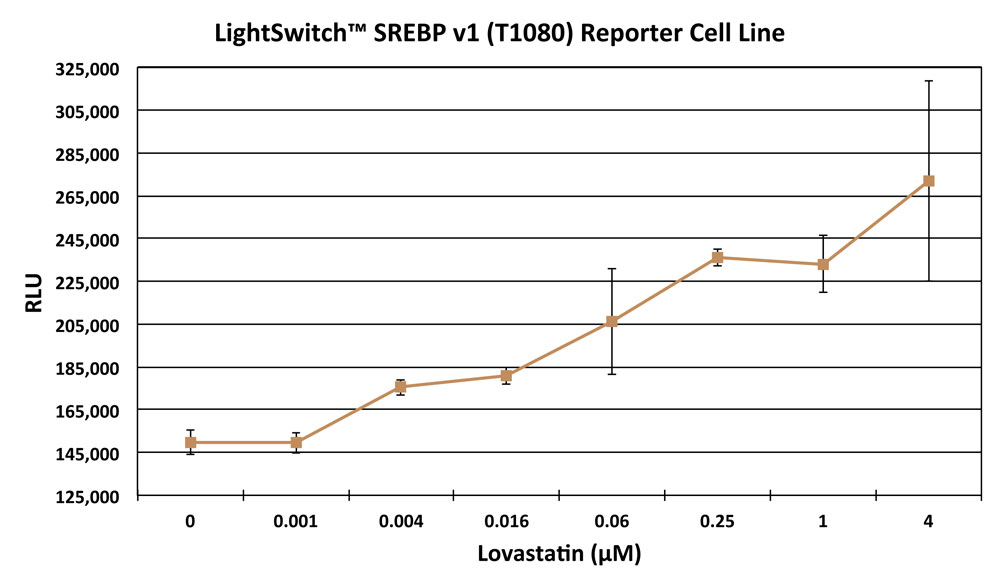

Graph showing the luciferase activity of the LightSwitch SREBP v1 Reporter Cell Line (HT1080) following induction with increasing amounts of Lovastatin
T-Test: 6.24E-05    Z′: 0.66
Click image to enlarge.

STAT Reporter Cell Line (Hep G2)

The LightSwitch™ STAT Reporter Cell Line (Hep G2) was designed for study of the Interferon pathway and the Signal Transducers and Activator of Transcription (STAT) family. It contains a stably integrated LightSwitch Promoter Reporter GoClone™ construct (S722854), which is comprised of the promoter sequence of the Colony Stimulating Factor 1 (CSF1) gene, which activates STAT1 and STAT3, cloned into the MCS of the LightSwitch Promoter Reporter Vector upstream of the RenSP luciferase gene.

The data at right shows the luciferase activity of the LightSwitch STAT Reporter Cell Line (Hep G2) when assayed using the LightSwitch Luciferase Assay Kit following induction with increasing amounts of IFN alpha (top) or IFN gamma (bottom). Please download the Data Sheet found under the Documents tab for more complete details.

Graph showing the luciferase activity of the LightSwitch STAT Reporter Cell Line (Hep G2) following induction with increasing amounts of IFN alpha
T-Test: 8.53E-05    Z′: 0.66
Click image to enlarge.


Graph showing the luciferase activity of the LightSwitch STAT Reporter Cell Line (Hep G2) following induction with increasing amounts of IFN gamma
T-Test: 8.8E-06    Z′: 0.79
Click image to enlarge.

STAT Reporter Cell Line (HT1080)

The LightSwitch™ STAT Reporter Cell Line (HT1080) was designed for study of the Interferon pathway and the Signal Transducers and Activator of Transcription (STAT) family. It contains a stably integrated LightSwitch Promoter Reporter GoClone™ construct (S722854), which is comprised of the promoter sequence of the Colony Stimulating Factor 1 (CSF1) gene, which activates STAT1 and STAT3, cloned into the MCS of the LightSwitch Promoter Reporter Vector upstream of the RenSP luciferase gene.

The data at right shows the luciferase activity of the LightSwitch STAT Reporter Cell Line (HT1080) when assayed using the LightSwitch Luciferase Assay Kit following induction with increasing amounts of IFN alpha (top) or IFN gamma (bottom). Please download the Data Sheet found under the Documents tab for more complete details.

Graph showing the luciferase activity of the LightSwitch STAT Reporter Cell Line (HT1080) following induction with increasing amounts of IFN alpha
T-Test: 4.74E-05    Z′: 0.69
Click image to enlarge.


Graph showing the luciferase activity of the LightSwitch STAT Reporter Cell Line (HT1080) following induction with increasing amounts of IFN gamma
T-Test: 4.8E-06    Z′: 0.70
Click image to enlarge.
