CUT&Tag-IT® Assay Kit – Tissue Overview
Related Products:
- CUT&Tag-IT Assay Kit – Cells: Perform CUT&Tag on cell samples
- CUT&Tag-IT® R-loop Assay Kit: Profile DNA-RNA Hybrid R-loops genome-wide
- CUT&Tag-Validated Antibodies: For best results with both tissue and cell samples
- pA-Tn5 Transposase: Recombinant transposase enzymes
- Nextera™-Compatible Multiplex Primers (96 plex): Multiplex more than 16 samples
Cleavage Under Targets and Tagmentation (CUT&Tag) is a method to investigate genomic localization of histone modifications and some transcription factors that reveals interactions between proteins and DNA or identifies DNA binding sites for proteins of interest.
Unlike MNase-Seq or ATAC-Seq methods that target open chromatin and are therefore dependent on chromatin accessibility, CUT&Tag utilizes an antibody-based enzyme tethering strategy to target specific histone modifications or proteins to reveal chromatin-binding information that is specific to those sites or proteins of interest.
CUT&Tag is based on the same principles as ChIP-Seq, but with several changes to the protocol that are advantageous in certain situations. Instead of the sonication of fixed chromatin and immunoprecipitation steps performed in ChIP-Seq protocols, in CUT&Tag, fresh (not frozen) unfixed cells are bound to concanavalin A beads and the antibody incubation is performed with cells in their native state. Directly following antibody binding, the chromatin is digested and NGS libraries are prepared in a single step by tagmentation using the protein A-Tn5 (pA-Tn5) transposome enzyme that has been pre-loaded with sequencing adapters.
CUT&Tag can rapidly produce high-quality results from less starting material than ChIP-Seq, and enables robust analysis from lower sequencing depths, saving both time and money.
CUT&Tag-IT® Assay Kit - Tissue Advantages
- Compatible with 0.5 – 10 mg tissue
- Includes specialized lysis buffer for tissue nuclei isolation
- Complete kit with optimized protocol including tissue strainers
- Developed for histone marks
- Sequencing-ready libraries without the laborious and costly steps of ChIP-Seq
- Low background signal enables lower sequencing depth
- No artifacts caused by formaldehyde crosslinking

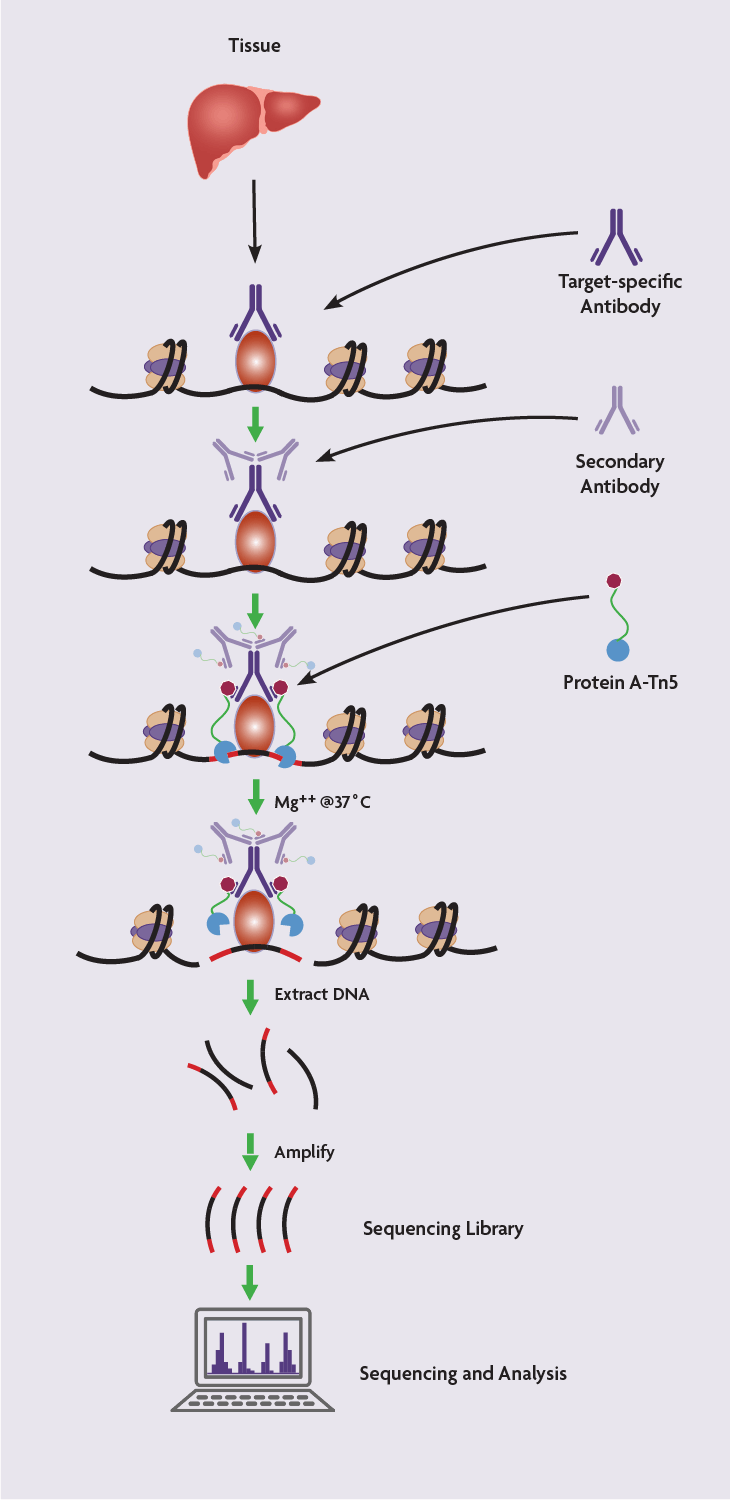

How the CUT&Tag-IT® Assay Works
CUT&Tag vs. CUT&RUN vs. ChIP-Seq
CUT&Tag | CUT&RUN | ChIP-Seq | |
---|---|---|---|
Performed Under Native Conditions? | Yes | Yes | No |
Chromatin Fragmentation Method | Tn5-based tagmentation | MNase digestion | Sonication |
Cell Number Requirements | ~250,000 nuclei | 500,000 cells | 1-10 million cells |
Sequencing Depth Required * | 2 million reads ** | 8 million reads † | 20-50 million reads |
Integrated Library Preparation? | Yes, uses tagmentation | No, separate library prep required | No, separate library prep required |
Compatible Targets | Primarily histone modifications, some transcription factors and co-factors | Wide range of histone modifications, transcription factors, and co-factors | Wide range of histone modifications, transcription factors, and co-factors |
Workflow Length | 1-2 days | 1-2 days | 2-3 days |
* Kaya-Okur et al. Nature Communications (2019) 10:1930
** For less abundant targets of interest, 8 to 10 million reads are recommended
† 25 million reads are recommended for transcription factor targets
CUT&Tag-IT® Assay Kit - Tissue Contents
The CUT&Tag-IT® Assay Kit -Tissue components are shipped at two temperatures, with one box on dry ice for components to be stored at -20°C, and a second box at room temperature for components that are not to be frozen and must be stored at 4°C. Please store components according to the storage conditions in the manual after first use. All reagents are guaranteed stable for 6 months from date of receipt when stored properly.
Reagents included:
- 5% Digitonin, store at -20°C
- CUT&Tag-IT Lysis Buffer – Tissue, store at RT
- 40 µm Strainer, store at RT
- Concanavalin A Beads, store at 4°C
- CUT&Tag-IT® Assembled pA-Tn5 Transposomes, store at -20°C
- Tagmentation Buffer, store at -20°C or 4°C
- 1X Binding Buffer, store at 4°C
- 1X Wash buffer, store at 4°C
- Dig-Wash Buffer, store at 4°C
- Antibody Buffer, store at 4°C
- Dig-300 Buffer, store at 4°C
- Rabbit Anti-Mouse Antibody, store at -20°C
- Guinea Pig Anti-Rabbit Antibody, store at -20°C
- Protease Inhibitor Cocktail, store at -20°C
- 0.5M EDTA, store at RT
- 10% SDS, store at RT
- 10 µg/µL Proteinase K, store at -20°C
- DNA Purification Columns, store at RT
- DNA Purification Binding Buffer, store at RT
- DNA Purification Wash Buffer, store at RT
- DNA Purification Elution Buffer, store at RT
- 3M Sodium Acetate, store at RT
- 10 mM DNTPs, store at -20°C
- 5X Q5 Buffer, store at -20°C
- Q5 High Fidelity DNA Polymerase (2U/µL), store at -20°C
- i5 Indexed Primer 1, store at -20°C
- i5 Indexed Primer 2, store at -20°C
- i5 Indexed Primer 3, store at -20°C
- i5 Indexed Primer 4, store at -20°C
- i7 Indexed Primer 1, store at -20°C
- i7 Indexed Primer 2, store at -20°C
- i7 Indexed Primer 3, store at -20°C
- i7 Indexed Primer 4, store at -20°C
- SPRI Beads, store at 4°C
Don’t forget to use an antibody validated for CUT&Tag!
Active Motif specializes in manufacturing high-quality antibodies to histones, histone modifications, chromatin proteins, and other factors, including a growing list of antibodies that we have experimentally validated in-house to work well in CUT&Tag assays. Check out our list of CUT&Tag-validated antibodies.
CUT&Tag-IT® Assay Kit - Tissue Data
CUT&Tag-IT® Assay Kit - Tissue FAQs
What do the steps of processing a tissue sample look like?
Photos 1 through 9 show the process starting with a mouse liver
Step 1: Starting tissue
Step 2: Cutting a small portion to be used as the reaction sample
Steps 3 & 4: How to mince it into smaller chunks in the edge or corner of the plate
Step 5: Finely mincing the chunks
Step 6: Moving those to the side of the plate for transfer to the strainer
Step 7: Cutting the tip off the end of the 1 mL pipette tip for transfering the sample
Step 8: Pipetting the sample with the pipette tip
Step 9: Transferring the sample to the strainer in the tube
Does the CUT&Tag-IT® Assay Kit include everything required to perform CUT&Tag?
Yes, the kit contains everything required including the assembled pA-Tn5 transposomes. The only additional material required would be the standard lab equipment and reagents which are listed under Additional Materials Required in the manual.
How is CUT&Tag different from ChIP-Seq?
CUT&Tag differs from ChIP-Seq in the following ways:
- No fixation is required for CUT&Tag
- No sonication or fragmentation required for CUT&Tag
- Lower cell number
- Integrated library prep
- Lower background
- Lower sequencing depth
When should a researcher choose CUT&Tag over ChIP-Seq?
CUT&Tag is a great choice for researchers who have limited cell numbers and are interested in understanding genome-wide changes in histone modifications. For researchers interested in understanding genome-wide transcription factor recruitment (endogenous or tagged) we recommend ChIP-Seq.
What controls are recommended to use with the CUT&Tag-IT® Assay Kit?
A good technical positive control for the reagents and workflow is the antibody H3K27me3 (cat# 39157). For a negative control we recommend using the secondary antibody without the primary antibody. This will show background from the secondary antibody and pA-Tn5 with your samples.
Do I need to include an IgG control?
The purpose of including an IgG control in CUT&Tag experiments is to determine if the pA-Tn5 is specific to genomic regions where the antibody is located/enriched. This negative control is not used in analysis and is different from the INPUT control used in ChIP-Seq. Active Motif R&D found that adding an IgG control does not add any additional value as the pA-Tn5 was shown to be specific. However, if you wish to add an IgG control this is fine.
Are there any QC steps recommended for the CUT&Tag-IT® Assay Kit?
After library generation, successful library prep quality should be assessed by evaluating the library on a TapeStation or Bioanalyzer. An ideal library would have most of the fragments below 500 bp. We recommend determining the library concentration by using a KAPA Library Quantification Kit.
Does CUT&Tag require an INPUT control like ChIP-Seq?
No. CUT&Tag does not require the use of an input control.
What antibodies have been validated using the CUT&Tag-IT® Assay Kit?
For a full list of CUT&Tag-IT® Assay Kit validated Active Motif antibodies visit: https://www.activemotif.com/catalog/1319/cut-tag-validated-antibodies
Are ChIP-Seq validated antibodies going to work with the CUT&Tag-IT® Assay Kit?
CUT&Tag and ChIP-Seq have quite different workflows. If an antibody works for ChIP-Seq, that does not necessarily mean it will work in CUT&Tag. We advise using one our CUT&Tag-IT® Assay Kit validated Active Motif antibodies, or validating a ChIP grade or ChIP-validated antibody.
Is the the CUT&Tag-IT® Assay Kit compatible with both monoclonal and polyclonal antibodies?
Yes, it is compatible with mouse and rabbit antibodies.
Are tagged proteins compatible with CUT&Tag?
We have not validated the CUT&Tag-IT® Assay Kit for tagged proteins. However, in principle, there is no reason why it couldn’t work.
Can the standard Active Motif Spike-In Normalization be used for the CUT&Tag-IT® Assay Kit?
No. Our standard ChIP-Seq Spike-In Normalization method is not compatible with the CUT&Tag-IT® Assay Kit.
Can I multiplex more than 16 samples using the CUT&Tag-IT® Assay Kit?
The CUT&Tag-IT®Assay Kit is supplied with 4x4 unique dual indexes for 16 unique samples. The indexed primers in the kit are identical to the Illumina Nextera primers corresponding to N701-N704 and N501-N504. If you would like to multiplex more than 16 samples our Nextera™-Compatible Multiplex Primers (96 plex) kit (Cat. No. 53155) enables multiplexing up to 96 reactions. These primers are provided at a concentration of 25 µM to be used directly in our Kits. You could also purchase and combine other Illumina Nextera primers at the same concentration (25 µM) as those in the kit.
Is the CUT&Tag-IT® Assay Kit compatible with qPCR analysis before sequencing?
Yes and no. Yes, you can do qPCR, but because of the randomness of Tn5’s insertion of the adapter it makes designing primers that will prime a specific gene problematic since it is likely that you will be missing one or the other primer landing site. Therefore, qPCR may contain errors as fragments that do not have the landing site will not be measured.
Are the CUT&Tag-IT® Assay Kit libraries single or dual indexed?
CUT&Tag libraries are dual-indexed libraries.
Do the CUT&Tag-IT® Assay Kit libraries contain a Molecular Identifiers?
No. CUT&Tag libraries do not contain molecular identifiers.
Should the CUT&Tag-IT® Assay Kit libraries be sequenced as single-end or paired-end?
The CUT&TAG-IT® Assay Kit libraries should be sequenced as paired end.
What read length is recommended for the CUT&Tag-IT® Assay Kit?
We recommend a read length of 2x38 (PE38). This is shorter than the read length described in the Henikoff paper. However, we have not seen an impact on data quality or mapping rates. You can use a higher read length if you wish to.
How do I analyze the sequencing data after using the CUT&Tag-IT® Assay Kit?
CUT&Tag data is analyzed similarly to ChIP-Seq data. We use a BWA algorithm with peak calling performed using MACS2.
Questions about sample library QC? Read more on our blog.
CUT&Tag-IT® Assay Kit - Tissue Documents
You might also be interested in:
- CUT&Tag Kits for cell samples
- CUT&Tag-IT® R-loop Assay Kit
- [Podcast] Multiple challenges of CUT&Tag
- Comprehensive Guide to Understanding and Using CUT&Tag Assays
- End-to-End CUT&Tag Services
- ATAC-Seq Kit
- View Epigenetic Services
- Browse All Epigenetics Resources
US Pat. No. 10,689,643, EP Pat. No. 2999784 and related patents and applications
Permitted Use; Resale Prohibited
In the absence of an express written agreement to the contrary, all products are sold and services deliverables are provided by Active Motif for (a) internal in vitro research purposes only and may not be used for services or any other commercial purpose (b) the exclusive use of the original purchaser, and are not to be resold. You agree not to reverse engineer or otherwise attempt to discover the structure or composition of products or services deliverables unless we otherwise agree in writing.
Name | Format | Cat No. | Price | |
---|---|---|---|---|
CUT&Tag-IT® Assay Kit - Tissue | 16 rxns | 53170 | $1,470 | Add to Cart |
