Ras GTPase Chemi ELISA Kit

Fast, sensitive analysis of activated Ras GTPase


Ras GTPase Chemi ELISA Kit Overview

Ras GTPase Chemi ELISA Kit Service

The Ras GTPase Chemi ELISA Kit was designed specifically for the study of Ras activation, and can be used to detect and quantify activated Ras GTPase in cell or tissue extracts. Monitoring levels of activated Ras can be useful for studying novel Ras activating signaling pathways, detecting oncogenic Ras proteins, or monitoring the effects of possible therapeutic compounds.

The Ras GTPase Chemi ELISA Kit uses the unique binding properties of the Ras-binding domain of the c-Raf kinase protein (Raf-RBD) which only binds activated Ras. A GST-fused Raf-RBD protein is bound to a 96-well glutathione-coated assay plate and addition of sample to the plate results in the binding of activated Ras to the Raf-RBD. A primary antibody specific for Ras is then added to the individual wells, followed by an HRP-conjugated secondary antibody and developing reagent. The plate is then read on a luminometer, which provides a sensitive chemiluminescent readout of activated Ras. The 96-well plate is suitable for both manually assaying small numbers of samples and for use in automated high-throughput screening assays.

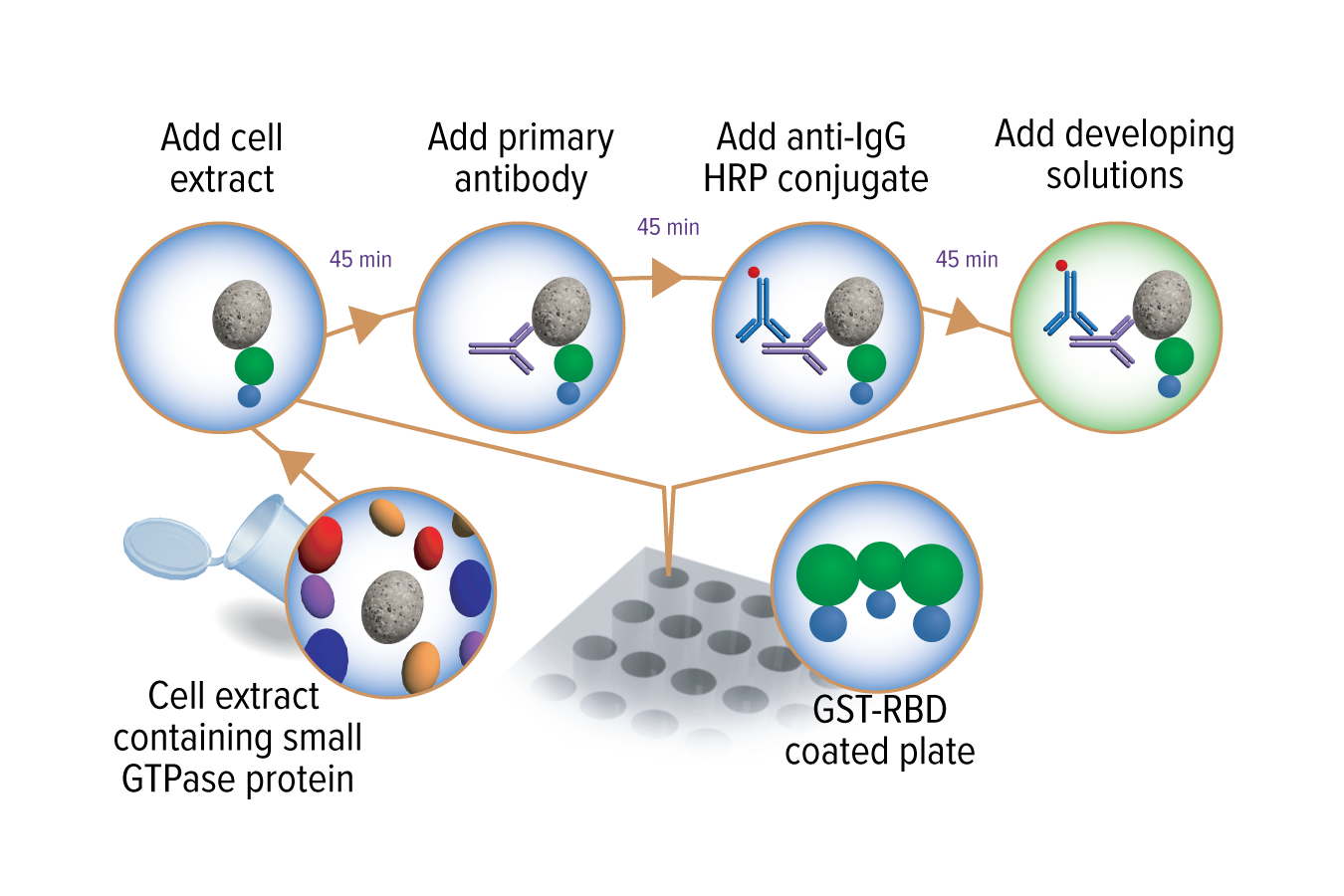

Flow Chart of Ras GTPase Chemi ELISA Kit

Flow Chart of Ras GTPase Chemi ELISA Kit
(Click image to enlarge)

Ras GTPase Background

The Ras protein is a GTPase enzyme. GTPases are a family of enzymes which bind to and hydrolyze GTP, functioning as molecular switches. When bound to GTP, Ras is active and activates effector proteins involved in the downstream control of cell proliferation and differentiation. When bound to GDP, Ras is inactive.

Ras signaling cascades are normally only transiently activated. This is because the Ras GTPase activity gradually converts GTP to GDP, rendering the protein inactive. However, oncogenic mutations of the Ras gene can lock the protein into the active GTP conformation, creating a form of the protein that is always active. The result is constituatively active Ras signaling and cells which grow uncontrollably. In fact, mutations of the Ras gene are present in around 30% of human cancers and are present in an especially high percentage of pancreatic, lung, and colorectal cancers. Consequently, Ras has become a popular target for cancer research and anti-cancer therapeutics. Learn more about targeting mutant Ras proteins in our Blog: Undruggable No More - Advances for Targeting Mutant Ras Proteins and Cancer.

Ras GTPase Chemi ELISA Kit Highlights

  • Detection Range – Works with 3-25 µg whole cell extract or > 0.6 ng purified protein per well.
  • Better Results – ELISA format is more sensitive than pull-down/Western methods.
  • Versatile – Use with extracts from cell and tissue samples, or with purified Ras protein
  • Reactivity – detects activated human K-Ras and H-Ras or activated rodent H-Ras
  • Quick – Results in fewer than 5 hours

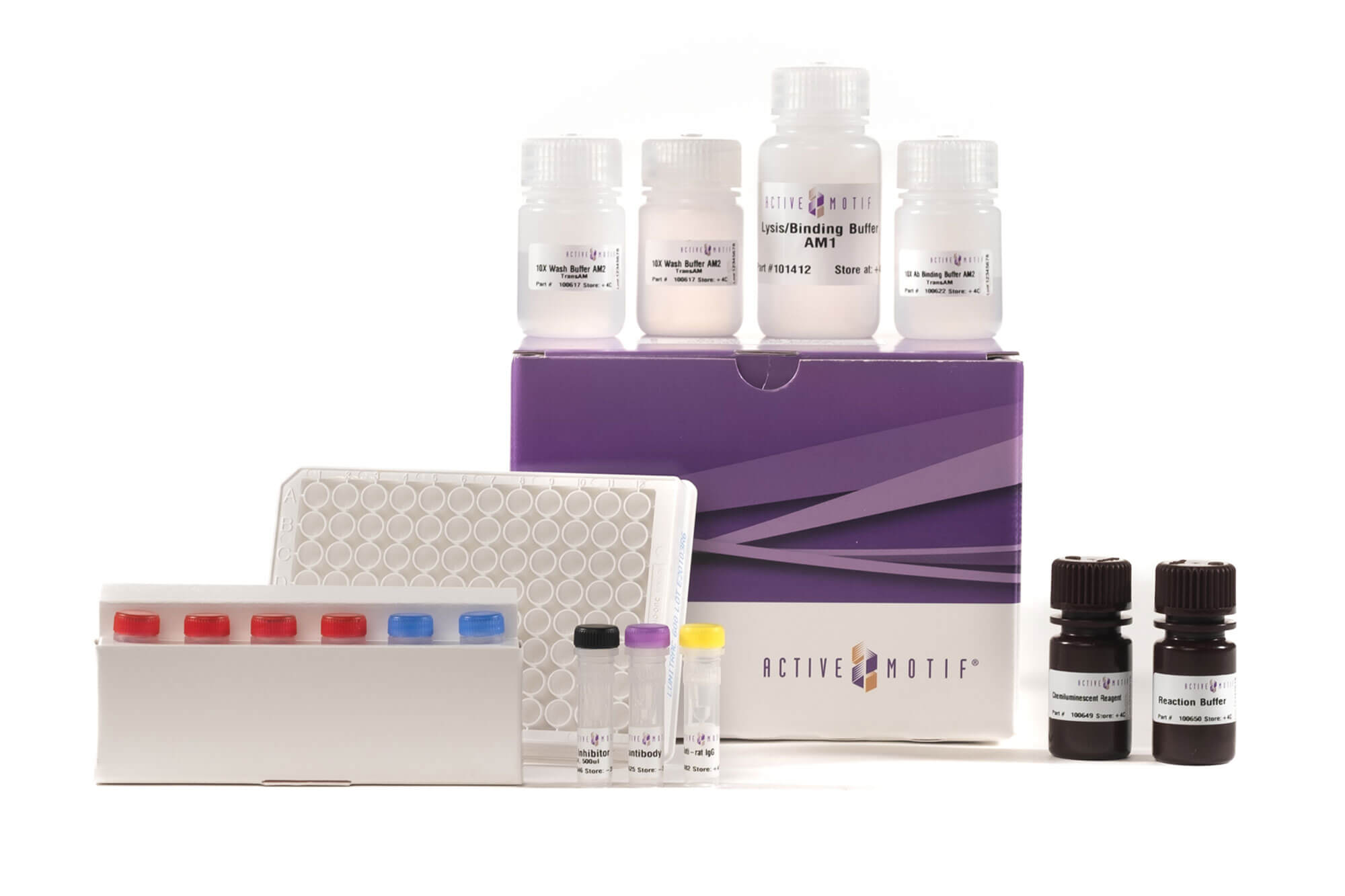

Ras GTPase Chemi ELISA Kit Contents

The Ras GTPase Chemi ELISA Kit contains sufficient reagents to perform 96 reactions. It is shipped on dry ice and contains reagents with multiple storage temperatures inside. Please confirm receipt of all reagents upon arrival and store items at the appropriate temperatures as indicated below. All reagents are guaranteed stable for 6 months from date of receipt when stored properly. This kit includes the following components:

  • Hela whole-cell extract (EGF treated); Store at -80°C
  • GST-Raf-RBD; Store at -80°C
  • H-Ras antibody; Store at -20°C
  • Anti-rat HRP-conjugated IgG; Store at -20°C
  • Protease Inhibitor Cocktail (PIC); Store at -20°C
  • Lysis/Binding Buffer AM1; Store at 4°C
  • 10X Wash Buffer AM2; Store at 4°C
  • 10X Antibody Binding Buffer AM2; Store at 4°C
  • Chemiluminescent Reagent; Store at 4°C
  • Reaction Buffer; Store at 4°C
  • 96-well Glutathione-coated Assay Plate; Store at 4°C
  • Plate Sealer; Store at 4°C

Ras GTPase Chemi ELISA Data

Ras GTPase Chemi ELISA quantifies activated Ras

Figure 1: Ras GTPase Chemi ELISA quantifies activated Ras
Increasing amounts of whole-cell extract from HeLa cells that had been stimulated with 5 ng/ml of EGF for 2 minutes were assayed using the Ras GTPase Chemi ELISA Kit. Data is also shown for unstimulated HeLa cells which contain basal levels of activated Ras.


Ras GTPase Chemi ELISA Kit FAQs

Can I use frozen cell or tissue samples as starting material?

For best results, we recommend using fresh material. This is an activity assay and freeze-thawing the starting material may mask experimental effects. If frozen sample is the only option, we recommend thawing and performing the homogenization step in the Complete Lysis Buffer. Whole cell extracts may be aliquoted and stored at -80°C. Avoid freeze/thaw cycles.

How do I prepare my sample if I am performing the assay with tissue?

For tissue, a modified protocol is required where a single-cell suspension is first created before the extraction. We recommend using the Nuclear Extract Kit, which contains a protocol for the preparation of whole-cell extract from tissue.

What types of Ras proteins will the included Ras antibody detect?

The H-Ras antibody will both detect H-Ras and K-Ras in human samples and H-Ras in mouse samples.

What controls are included in the kit?

The HeLa whole-cell extract (EGF treated) is provided as a positive control for Ras activation. Sufficient extract is supplied for 8 reactions per plate. This extract is optimized to give a strong signal when used at 25 µg/well.

Are there other positive or negative controls that can be used with the kit?

An optional protocol is included in the manual for using either GTPγS or GDP to create positive and negative controls from any whole cell extract. GTPγS acts as an activator while GDP acts as an inhibitor to Ras activation.


Ras GTPase Chemi ELISA Kit Publications

Search our database of customer publications that have used our Ras GTPase Chemi ELISA Kit.



Ras GTPase Publications (as resold by Abcam, Cat. No. ab134640)

Le Roux Ö, Pershing NLK, Kaltenbrun E, Newman NJ, Everitt JI, Baldelli E, Pierobon M, Petricoin EF, Counter CM. Genetically manipulating endogenous Kras levels and oncogenic mutations in vivo influences tissue patterning of murine tumorigenesis. Elife. 2022 Sep 7;11:e75715. doi: 10.7554/eLife.75715. PMID: 36069770; PMCID: PMC9451540.https://pubmed.ncbi.nlm.nih.gov/36069770/

Adachi H, Morizane A, Torikoshi S, Raudzus F, Taniguchi Y, Miyamoto S, Sekiguchi K, Takahashi J. Pretreatment with Perlecan-Conjugated Laminin-E8 Fragment Enhances Maturation of Grafted Dopaminergic Progenitors in Parkinson's Disease Model. Stem Cells Transl Med. 2022 Jul 20;11(7):767-777. doi: 10.1093/stcltm/szac033. PMID: 35605097; PMCID: PMC9299512. https://pubmed.ncbi.nlm.nih.gov/35605097/

Kim JW, Marquez CP, Kostyrko K, Koehne AL, Marini K, Simpson DR, Lee AG, Leung SG, Sayles LC, Shrager J, Ferrer I, Paz-Ares L, Gephart MH, Vicent S, Cochran JR, Sweet-Cordero EA. Antitumor activity of an engineered decoy receptor targeting CLCF1-CNTFR signaling in lung adenocarcinoma. Nat Med. 2019 Nov;25(11):1783-1795. doi: 10.1038/s41591-019-0612-2. Epub 2019 Nov 7. PMID: 31700175; PMCID: PMC7087454. https://pubmed.ncbi.nlm.nih.gov/31700175/

Yin C, Zhu B, Zhang T, Liu T, Chen S, Liu Y, Li X, Miao X, Li S, Mi X, Zhang J, Li L, Wei G, Xu ZX, Gao X, Huang C, Wei Z, Goding CR, Wang P, Deng X, Cui R. Pharmacological Targeting of STK19 Inhibits Oncogenic NRAS-Driven Melanomagenesis. Cell. 2019 Feb 21;176(5):1113-1127.e16. doi: 10.1016/j.cell.2019.01.002. Epub 2019 Jan 31. PMID: 30712867. https://pubmed.ncbi.nlm.nih.gov/30712867/

Liong S, Barker G, Lappas M. Placental Ras Regulates Inflammation Associated with Maternal Obesity. Mediators Inflamm. 2018 Oct 8;2018:3645386. doi: 10.1155/2018/3645386. PMID: 30402038; PMCID: PMC6196914. https://www.ncbi.nlm.nih.gov/pmc/articles/PMC6196914/

Mainardi S, Mulero-Sánchez A, Prahallad A, Germano G, Bosma A, Krimpenfort P, Lieftink C, Steinberg JD, de Wit N, Gonçalves-Ribeiro S, Nadal E, Bardelli A, Villanueva A, Bernards R. SHP2 is required for growth of KRAS-mutant non-small-cell lung cancer in vivo. Nat Med. 2018 Jul;24(7):961-967. doi: 10.1038/s41591-018-0023-9. Epub 2018 May 28. PMID: 29808006. https://pubmed.ncbi.nlm.nih.gov/29808006/

Nichols RJ, Haderk F, Stahlhut C, Schulze CJ, Hemmati G, Wildes D, Tzitzilonis C, Mordec K, Marquez A, Romero J, Hsieh T, Zaman A, Olivas V, McCoach C, Blakely CM, Wang Z, Kiss G, Koltun ES, Gill AL, Singh M, Goldsmith MA, Smith JAM, Bivona TG. RAS nucleotide cycling underlies the SHP2 phosphatase dependence of mutant BRAF-, NF1- and RAS-driven cancers. Nat Cell Biol. 2018 Sep;20(9):1064-1073. doi: 10.1038/s41556-018-0169-1. Epub 2018 Aug 13. PMID: 30104724; PMCID: PMC6115280. https://pubmed.ncbi.nlm.nih.gov/30104724/

Yeung Y, Lau DK, Chionh F, Tran H, Tse JWT, Weickhardt AJ, Nikfarjam M, Scott AM, Tebbutt NC, Mariadason JM. K-Ras mutation and amplification status is predictive of resistance and high basal pAKT is predictive of sensitivity to everolimus in biliary tract cancer cell lines. Mol Oncol. 2017 Sep;11(9):1130-1142. doi: 10.1002/1878-0261.12078. Epub 2017 Jun 14. PMID: 28544747; PMCID: PMC5579335. https://www.ncbi.nlm.nih.gov/pmc/articles/PMC5579335/

Feng C, Sun P, Hu J, Feng H, Li M, Liu G, Pan Y, Feng Y, Xu Y, Feng K, Feng Y. miRNA-556-3p promotes human bladder cancer proliferation, migration and invasion by negatively regulating DAB2IP expression. Int J Oncol. 2017 Jun;50(6):2101-2112. doi: 10.3892/ijo.2017.3969. Epub 2017 Apr 20. PMID: 28440444. https://pubmed.ncbi.nlm.nih.gov/28440444/
